SKYLAB ROM GPS module SKG09BL MT3337 -165dBm QZSS Low Power GPS Receiver Module

1 review
100% of buyers enjoyed this product! 3 orders

$35.10

962 in stock

SKU:
32753722519
Category:
Buyer protection
Safe shopping
Easy returns and refunds
Free shipping worldwide

Name: Ultra High Sensitivity and Low Power GPS Receiver Module

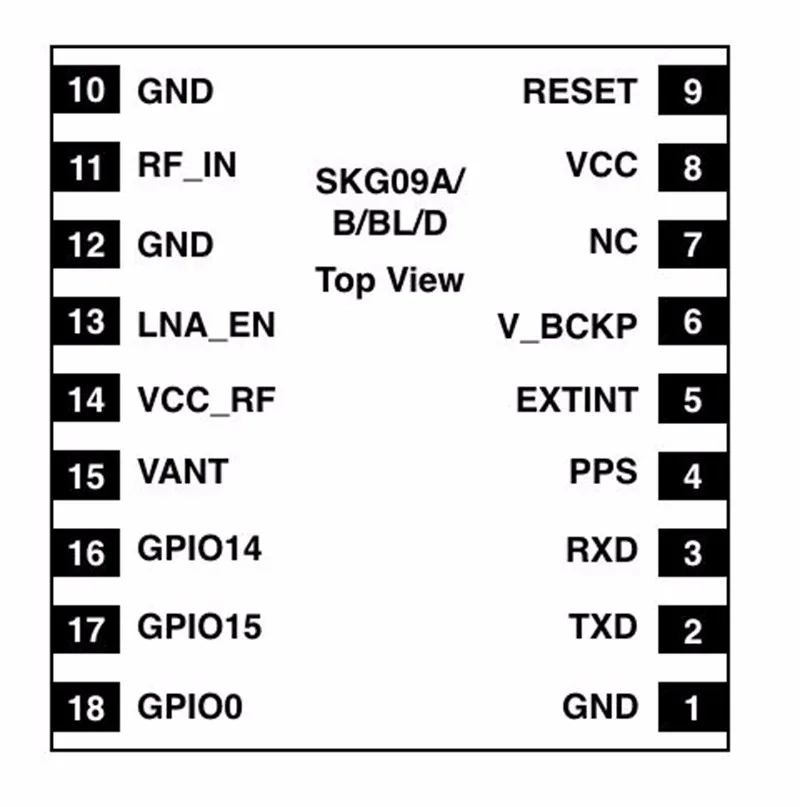

Model No.: SKG09BL
The SKG09BL is a complete GPS engine module that features super sensitivity, ultra low power and small form factor. The GPS signal is applied to the antenna input of module, and a complete serial data message with position, velocity and time information is presented at the serial interface with NMEA protocol or custom protocol.
It is based on the high performance features of the MediaTek MT3337 single-chip architecture, Its –165dBm tracking sensitivity extends positioning coverage into place like urban canyons and dense foliage environment where the GPS was not possible before. The small form factor and low power consumption make the module easy to integrate into portable device like PNDs, mobile phones, cameras and vehicle navigation systems.
Ultra high sensitivity: -165dBm
Extremely fast TTFF at low signal level
Built-in 12 multi-tone active interference canceller
Ultra low power consumption
±10ns high accuracy time pulse (1PPS)
NMEA Output: GGA,GSA,GSV,RMC,VTG,GLL
Support QZSS
Advanced Features: Aiding EPO;EASY
RoHS compliant (Lead-free)

Dimension: 10.1 x 9.7 x 2.2mm

GPS type

Receiver & Antenna

Brand Name

SKYLAB

Model Name

SKG09BL

Name

Ultra High Sensitivity and Low Power GPS Receiver Module

Chip

MT3337

Sensitivity

-165dBm

PPS

+/-10ns

NMEA Output

GGA,GSA,GSV,RMC,VTG,GLL

Satellite

QZSS

Advanced Features

Aiding EPO;EASY

Dimension

10.1 x 9.7 x 2.2mm

Input Voltage Vcc

3.0V to 4.2V

Acquisition Vcc

<25mA
